Alnico Magnets

Alnico Magnets

Types Of Alnico Pickup Permanent Magnets For Sale

A high working temperature limit (550°C/1020°F) makes Alnico especially well-suited for sensitive automotive and aircraft sensor applications. Alnico permanent magnets are produced in many grades to fit the requirements of these applications, from Alnico 1 to Alnico 12, but the most popular grades are 2, 5 and 8. By comparison to the newer materials, the coercivity of Alnico permanent magnets is low.


Types of Alnico Magnets for Sale

Leyuan Alnico Magnets Products Show 01

Leyuan Alnico Magnets Products Show 01

Leyuan Alnico Magnets Products Show 02

Leyuan Alnico Magnets Products Show 02

The Specification of Alnico Magnets

Magnetic and Physical Properties of Cast Alnico Magnet

GradeEquivalent MMPA ClassBrHcbBH(max)WTRemark
mTGskA/mOekJ/m³MGOe°C
LN10ALNICO3600600040500101.2450Isotropic
LN13ALNICO270070004860012.81.6450
LNGT18ALNICO858058001001250182.2550
LNG37ALNICO512001200048600374.65525Anisotropic
LNG4012501250048600405
LNG4412501250052650445.5
LNG52ALNICO5DG13001300056700526.5
LNG60ALNICO5-713501350059740607.5
LNGT28ALNICO610001050057.6720283.5525
LNGT36JALNICO8HC70070001401750364.5550
LNGT38ALNICO880080001101380384.75550
LNGT4082082001101380405550
LNGT60ALNICO995095001101380607.5550
LNGT721050105001121400729550


Where Alnico permanent magnets are appropriate, the sizes of alnico magnets for sale can be minimized if it can be magnetized after assembly into the magnetic circuit. If used independently of other circuit components, as in security applications, the effective length-to-diameter ratio (related to the permeance coefficient) must be great enough to cause the magnet to work above the knee in its second quadrant demagnetization curve. For critical applications, Alnico magnets may be calibrated to an established reference flux density value. However, a result of low coercivity is sensitivity to demagnetizing effects due to external magnetic fields, shock, and application temperatures. For critical applications, Alnico magnets can be temperature-stabilized to minimize these effects.


As one of the most professional alnico magnet manufacturers from China, Leyuan has the alnico bar magnets for sale. If you want to buy alnico magnets and want to know alnico magnet price or our other alnico magnet types, please contact Disheng or leave a message through our website.


Other Magnetic Products You May Also Like

Neodymium Magnets

Neodymium Magnets

Pot Magnets With Bore

Pot Magnets With Bore

Magnetic Trap

Magnetic Trap

Pot Magnets Threaded

Pot Magnets Threaded


Related Blogs

Methods to Improve the Working Efficiency of Dry Magnetic Separator Application Advantages of Magnetic Couplings Technology and Principle of Magnetic Filters Magnetic Field Generation Principle of Neodymium Bar Magnets


Leyuan Video Show

Magnetic Grids Customized, 14000Gs | Leyuan Group
Magnetic Grids Customized, 14000Gs | Leyuan Group

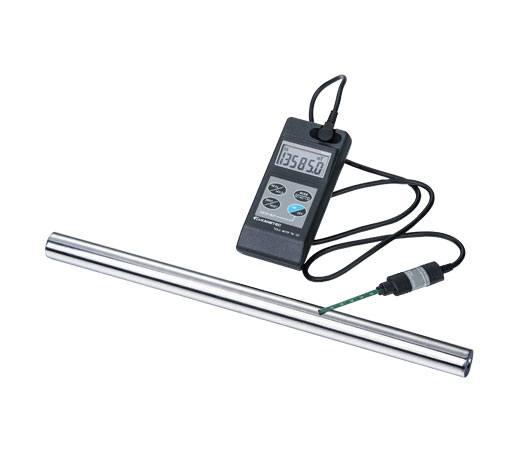

Over 14000Gs Magnetic Tubes, Sanitory Food grade | Leyuan Group
