Pot Magnets Threaded

Pot Magnets Threaded

These pot magnets with threaded stud have a metric internal thread and can be fastened with objects with an external thread. We can also provide these magnets with a rubber coating.


The magnets are embedded in a steel pot. The steel pot increases the adhesive force of the magnet on direct contact with a thick iron surface. If there is no direct contact with the counterpart, or if the steel plate is thin, painted, or rough, you can strain it much less.


Threaded neodymium cup magnets are made of a powerful Neodymium magnet sunken into a steel shell meaning that the north pole is located at the center of the magnetic face and the south pole is located around the outer edge of it. The steel pot increases the adhesive force of the threaded neodymium magnets, giving them an incredible hold for their size. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact by a steel surface.


Neodymium Pot Magnets with FemaleThreaded magnet / Threaded Hole are a type of cup magnets. FemaleThreaded-through-hole magnets are NdFeB pot magnets that are best suited for small-sized magnetic products with very high pull strength.


The Specification of Pot Magnets Threaded

Thread Bolt Stamp

Thread Bolt Lathe

Female Bush Stamp

Female Bush Lathe

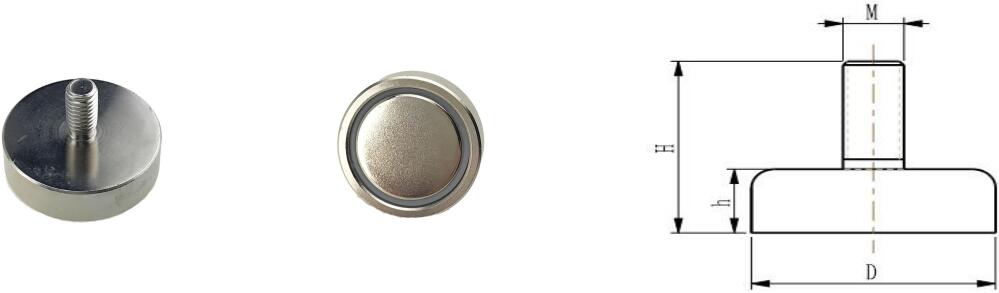

Pot magnet (NdFeB), with external thread, Nickel coating, body stamping machining.


Pot Magnet (ndfeb), With External Thread, Nickel Coating, Body Stamping Machining.


Model

D

M

H

h

Weight (g)

Pull force (Kgf)

107-10

10

3

12

5

4

1.5

107-12

12

3

12

5

5

2

107-16

16

4

14

5.2

9

8

107-20

20

4

16

7.2

16

12

107-25

25

5

17

7.7

26

22

107-32

32

6

18

7.8

43

34

107-36

36

6

17.6

7.6

54

41

107-40

40

6

17.7

7.8

75

51

107-42

42

6

18.7

8.8

83

66

107-48

48

8

24

10.8

130

78

107-60

60

8

31.5

15

256

120

107-75

75

10

35

17.8

510

168

107-10L

10

3

11

4

3

1.2

107-12L

10

3

11

4

4

1.8

107-16L

16

4

14

5.2

9

6

107-20L

20

4

14.8

6

15

11

107-25L

25

5

16.2

6.9

27

20

107-32L

32

6

17.1

6.8

43

32

107-36L

36

6

16.7

6.9

55

39

107-42L

42

6

17.7

7.9

83

63

107-48L

48

8

22.8

9.6

126

75

107-60L

60

8

31.5

15

282

120

107-75L

75

10

35

17.8

564

168

107-10P

10

3

12

5

4

2

107-12P

12

3

12

5

5

2.5

107-16P

16

4

14

5.2

9

10

107-20P

20

4

16

7.2

16

15

107-25P

25

5

17

7.7

26

28

107-32P

32

6

18

7.8

43

43

107-36P

36

6

17.6

7.6

54

51

107-40P

40

6

17.7

7.8

75

64

107-42P

42

6

18.7

8.8

83

83

107-48P

48

8

24

10.8

130

98

107-60P

60

8

31.5

15

256

169

107-75P

75

10

35

17.8

510

244

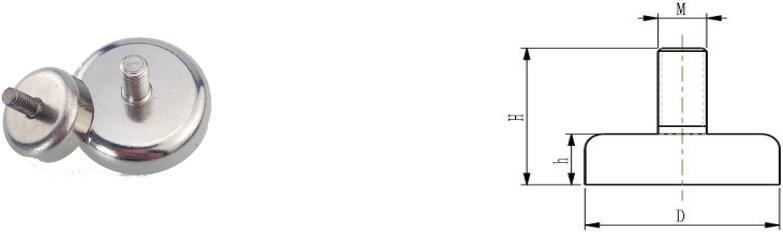

Pot magnet (NdFeB), with external thread, Nickel coating, body lathe machining.


Pot Magnet (ndfeb), With External Thread, Nickel Coating, Body Stamping Machining.


Model

D

M

H

h

Weight (g)

Pull force (Kgf)

108-8

8

3

11.5

4.7

3

1

108-10

10

3

14.3

5

4

1.5

108-12

12

3

14

5

5

2

108-14

14

4

14

4.5

7

5

108-16

16

4

14

5.2

9

8

108-18

18

4

14

6

12

10

108-20

20

4

16

7.2

16

12

108-22

22

4

16.2

6.9

20

18

108-25

25

5

17

7.7

26

22

108-28

28

5

16.8

6.4

31

26

108-30

30

5

16.8

6.4

35

29

108-32

32

6

18

7.8

43

34

108-34

34

6

17.7

7.3

50

37

108-36

36

6

17.6

7.6

54

41

108-38

38

6

17.2

7.4

65

46

108-40

40

6

17.7

7.8

75

51

108-42

42

6

18.7

8.8

83

68

108-45

45

8

21.9

8.7

103

75

108-48

48

8

24

10.8

130

78

108-50

50

8

25.6

10.7

151

91

108-55

55

8

29.2

12

209

102

108-60

60

8

31.5

15

256

120

108-65

65

10

33

14.9

362

137

108-70

70

10

34

16.9

467

153

108-75

75

10

35

17.8

510

178

108-80

80

10

36.2

19

681

250

108-90

90

10

35.2

18

841

340

108-100

100

12

35.2

18

1070

380

108-110

110

12

35.2

18

1291

420

108-120

120

12

40

18

1420

480

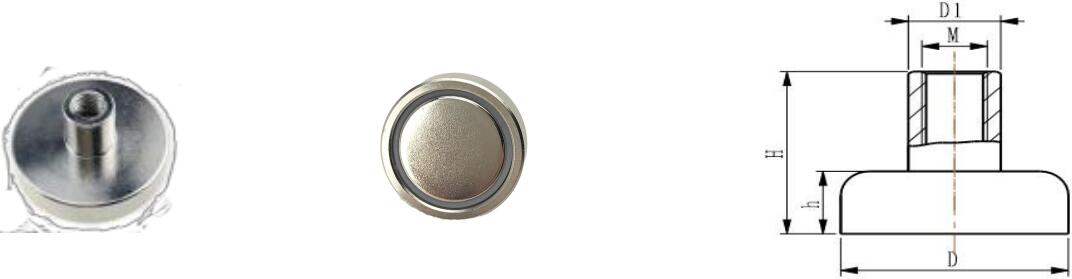

Pot magnet (NdFeB), with screwed bush, Nickel coating, body stamping machining.


Pot Magnet (ndfeb), With External Thread, Nickel Coating, Body Stamping Machining.


Model

D

D1

M

H

h

Weight
(g)

Pull force (Kgf)

109-10

10

6

3

12.6

5

4

1.5

109-12

12

6

3

12.6

5

5

2

109-16

16

6.5

4

13.5

5.2

9

8

109-20

20

6.5

4

15

7.2

17

12

109-25

25

7.5

5

17

7.7

28

22

109-32

32

10

6

18

7.8

45

34

109-36

36

10

6

18.5

7.6

55

41

109-40

40

10

6

18.8

7.8

78

51

109-42

42

10

6

18.8

8.8

84

66

109-48

48

12

8

24

10.8

130

78

109-60

60

12

8

28

15

263

120

109-75

75

17

10

35

17.8

515

168

109-10L

10

6

3

11.6

4

4

1.2

109-12L

12

6

3

11.6

4

5

1.8

109-16L

16

6.5

4

13.5

5.2

10

6

109-20L

20

6.5

4

13.8

6

15

11

109-25L

25

7.5

5

16.2

6.9

27

20

109-32L

32

10

6

17

6.8

45

32

109-36L

36

10

6

17.8

6.9

58

39

109-42L

42

10

6

18.8

7.9

86

63

109-48L

48

12

8

22.8

9.6

128

75

109-60L

60

12

8

28

15

285

120

109-75L

75

17

10

35

17.8

577

168

109-10P

10

6

3

12.6

5

4

2

109-12P

12

6

3

12.6

5

5

2.5

109-16P

16

6.5

4

13.5

5.2

9

10

109-20P

20

6.5

4

15

7.2

17

15

109-25P

25

7.5

5

17

7.7

28

28

109-32P

32

10

6

18

7.8

45

43

109-36P

36

10

6

18.5

7.6

55

51

109-40P

40

10

6

18.8

7.8

78

64

109-42P

42

10

6

18.8

8.8

84

83

109-48P

48

12

8

24

10.8

130

98

109-60P

60

12

8

28

15

263

169

109-75P

75

17

10

35

17.8

515

244

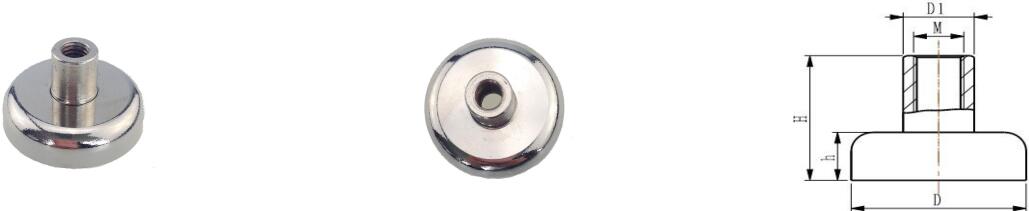

Pot magnet (NdFeB), with screwed bush, Nickel coating, body lathe machining.


Pot Magnet (ndfeb), With External Thread, Nickel Coating, Body Stamping Machining.


Model

D

D1

M

H

h

Weight
(g)

Pull force (Kgf)

110-8

8

4.5


3

11.5

4.7

3

1

110-10

10

6

3

12.5

5

4

1.5

110-12

12

6

3

12.5

5

5

2

110-14

14

6.5

4

12.5

4.5

7

5

110-16

16

6.5

4

13.5

5.2

9

8

110-18

18

6.5

4

13.8

6

13

10

110-20

20

6.5

4

15

7.2

17

12

110-22

22

6.5

4

16.2

6.9

21

18

110-25

25

7.5

5

17

7.7

28

22

110-28

28

7.5

5

15.7

6.4

31

26

110-30

30

7.5

5

16.6

6.4

36

29

110-32

32

10

6

18

7.8

45

34

110-34

34

10

6

17.5

7.3

52

37

110-36

36

10

6

18.5

7.6

55

41

110-38

38

10

6

18.3

7.4

68

46

110-40

40

10

6

18.8

7.8

78

51

110-42

42

10

6

18.8

8.8

84

68

110-45

45

12

8

19.6

8.7

103

75

110-48

48

12

8

24

10.8

130

78

110-50

50

12

8

25.6

10.7

153

91

110-55

55

12

8

29.2

12

211

102

110-60

60

12

8

28

15

263

120

110-65

65

12

8

32.2

14.9

358

137

110-70

70

17

10

34.2

16.9

481

153

110-75

75

17

10

35

17.8

515

178

110-80

80

17

10

36.2

19

694

250

110-90

90

17

10

35.2

18

854

340

110-100

100

22

12

35.2

18

1088

380

110-110

110

22

12

35.2

18

1309

420

110-120

120

23

12

40

18

1440

480
