Samarium Cobalt

Samarium Cobalt

As one of the samarium cobalt magnet suppliers, Leyuan would like to introduce you Samarium Cobalt Magnets which come in energy products from 16MGOe up to 33MGOe. Their high resistance to demagnetizing influences and excellent thermal stability has ensured Sm-Co as the premium choice for the most demanding motor applications. In addition to this, the corrosion resistance is significantly higher than, for example, Nd-Fe-B. It is still recommended to coat the magnet in acidic conditions. Its corrosion resistance has also offered a high degree of comfort to those looking to use magnets in medical applications.

Types of Samarium Cobalt for Sale

Leyuan Samarium Cobalt Products Show 02

Leyuan Samarium Cobalt Products Show 02

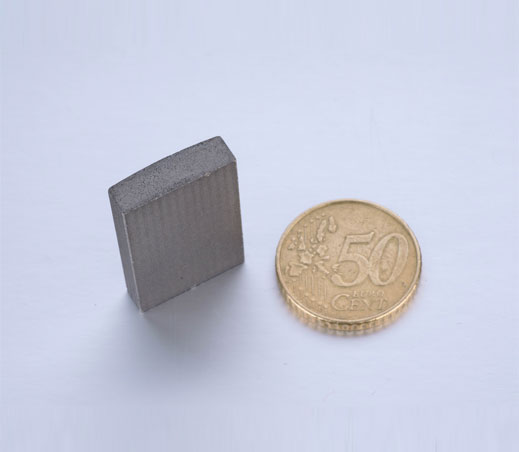

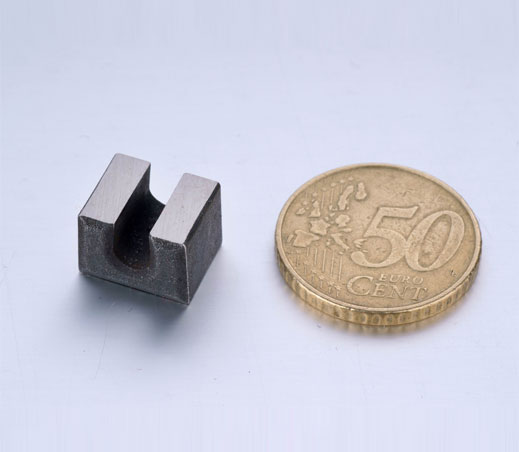

Leyuan Samarium Cobalt Products Show 01

Leyuan Samarium Cobalt Products Show 01

The Specification of Samarium Cobalt Magnets

Sintered SmCo Magnets Magnetic properties

GradeBrHcbHcjBH(max)WT
kGsTkOekA/mkOekA/mMGOekJ/m³
SmCo5XG167.7-8.60.77-0.867.7-9.0613-71615.0-23.01194-183115-18120-143250
XG16H7.7-8.60.77-0.867.7-9.0613-716≥23≥183115-18120-143
XG188.1-9.20.81-0.928.0-9.5637-75615.0-23.01194-183117-20135-159
XG18H8.1-9.20.81-0.928.0-9.5637-756≥23≥183117-20135-159
XG208.5-9.50.85-0.958.0-9.5637-75615.0-23.01194-183119-22151-175
XG20H8.5-9.50.85-0.958.0-9.5637-756≥23≥183119-22151-175
XG228.9-10.00.89-1.008.1-9.9644-78715.0-23.01194-183120-23159-183
XG22H8.9-10.00.89-1.008.1-9.9644-787≥23≥183120-23159-183
Sm2Co17XGS24M9.2-10.40.92-1.044.0-9.9318-7885.0-15.0398-119422-25175-199350
XGS249.2-10.40.92-1.048.3-10.0661-79615.0-25.01194-199022-25175-199
XGS24H9.2-10.40.92-1.048.3-10.1661-804≥25.0≥199022-25175-199
XGS26M10-10.61.00-1.064.0-10.0318-7965.0-15.0398-119424-27191-215
XGS2610-10.61.00-1.068.5-10.3677-82015.0-25.01194-199024-27191-215
XGS26H10-10.61.00-1.068.5-10.3677-820≥25.0≥199024-27191-215
XGS28M10.4-11.01.04-1.104.0-10.1318-8045.0-15.0398-119426-29207-231
XGS2810.4-11.01.04-1.108.5-10.3677-82015.0-25.01194-199026-29207-231
XGS28H10.4-11.01.04-1.108.5-10.3677-820≥25.0≥199026-29207-231
XGS30M10.8-11.21.08-1.124.0-10.1318-8045.0-15.0398-119428-31223-247
XGS3010.8-11.21.08-1.128.8-10.4700-82815.0-25.01194-199028-31223-247
XGS30H10.8-11.21.08-1.128.8-10.4700-828≥25.0≥199028-31223-247
XGS32M11.0-11.51.10-1.154.0-10.1318-8045.0-12.0398-95529-32231-255
XGS3211.0-11.51.10-1.159.5-10.7755-85015.0-25.01194-199029-32231-255
Low temp coeff Sm2Co17XGS22LT9.0-9.90.90-0.998.5-9.5677-756≥15≥119420-23159-183
XGS24LT9.2-10.20.92-1.028.5-9.5677-756≥15≥119422-25175-199350


Its magnetic properties are not too far from Neodymium Iron Boron magnets but, due to the  cost and strategic value of Cobalt, it never had the commercial success and diffusion of NdFeB. Being a rare earth magnet, it is an intermetallic compound of rare earth metals (samarium) and transition metals (cobalt). The production process consists in milling, pressing, and sintering in an inert atmosphere: magnets are then pressed in an oil bath (isostatically) or in a dye (axially or diametrically). SmCo is processed by grinding with diamond tools. As mentioned, SmCo can provide high magnetic performances, with maximum energy production of around 240 KJ/m3: they can be found in two different grades, Sm1Co5 and Sm2Co17, and each one has its own specific magnetic behavior (nucleation for the first, pinning in Sm2Co17). Sm2Co17 shows the highest magnetic performances but, on the opposite side, it is much more difficult to be magnetized (4000 kA/m) than Sm1Co5 (2000 kA/m). The two advantages of SmCo grades versus NdFeB are the corrosion resistance and the good thermal behavior; Curie temperature is around 750°C for Sm1Co5 and 850°C for Sm2Co17 . Furthermore, the rate of magnetic properties decrease is rather low by increasing the temperature. SmCo grades are best appreciated in military and aerospace industries, as well as in the electromedical field; they should be preferred when oxidation or thermal needs become very important. Its industrial applications are similar to the ones of NdFeB: sensors, loudspeakers, electric motors, instruments, and switches.


As one of the most professional samarium cobalt magnet manufacturers from China, Leyuan has the samarium cobalt magnets for sale. If you want to know samarium cobalt magnet price, please contact Leyuan or leave a message through our website.


Other Magnetic Products You May Also Like

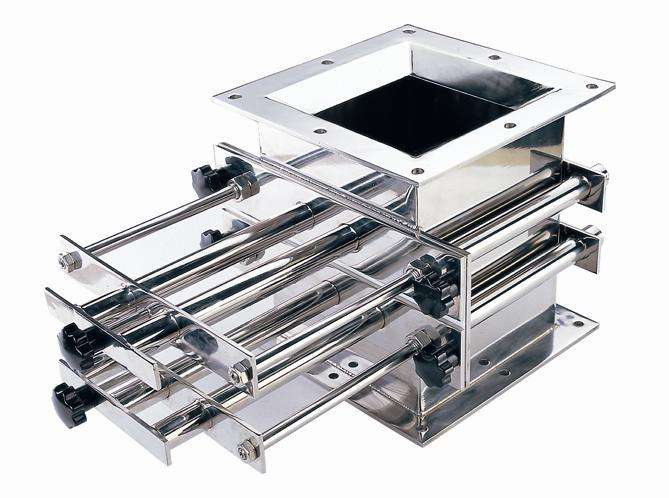

Magnetic Drawer

Magnetic Drawer

Pot Magnets With Bore

Pot Magnets With Bore

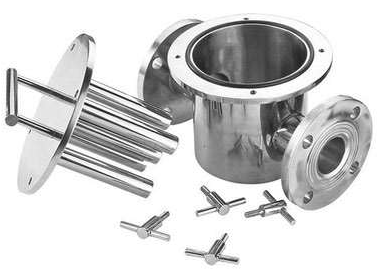

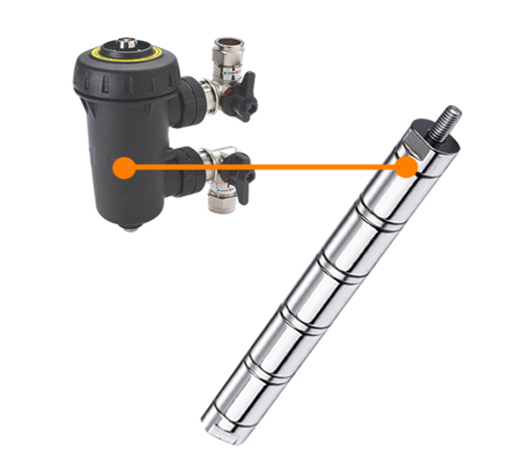

Magnetic Tube

Magnetic Tube

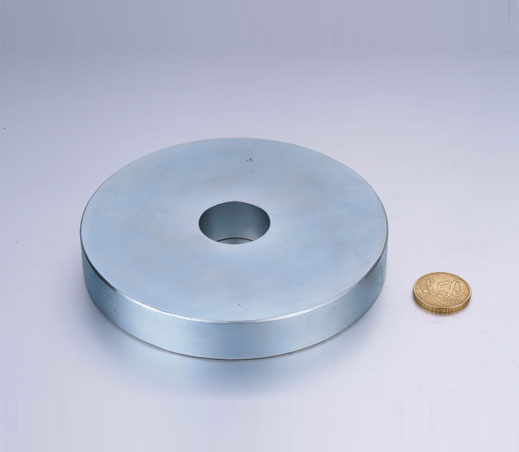

Neodymium Magnets

Neodymium Magnets


Related Blogs

The Application of Magnetic Coupling in Roller Press Drive System 4 Secrets You Might Not Know When Purchasing Magnetic Separations How to Control the Product Quality of NdFeB Permanent Magnets? What is the Composition of a Magnetic Coupling?


Leyuan Video Show

Self Cleanning Magnetic Drawer Leyuan Group
Self Cleanning Magnetic Drawer Leyuan Group

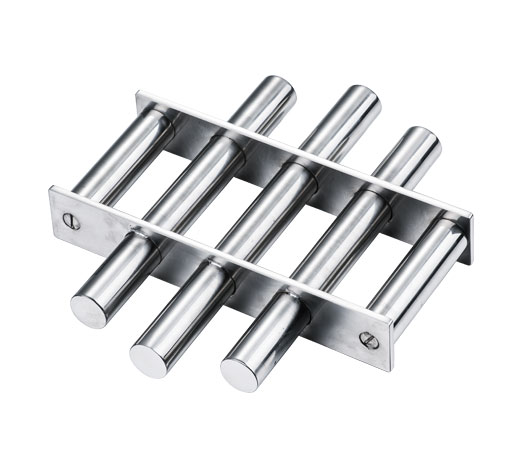

Magnetic Grids Customized, 14000Gs | Leyuan Group
