Pot Magnets Without Bore

Pot Magnets Without Bore

Coating one surface of the magnet with an iron sheet means that the magnetism of the coated surface is shielded and the magnetic lines are guided to the other surface so that the magnetic force of the other surfaces is strengthened. For some magnet applications, only the magnetic force of one side is needed, while the other side of the magnetic force could cause interference; in some applications, only one side of the magnet can be used, and the other side not used, which is not essential. This can lower the cost and savings of the amount of magnetic material used.


As one of the most professional pot magnets manufacturers from China, our pot Magnets without bore are strong flat circle magnets. They are flat, round magnets and only one side have magnetism; they are widely used in moon cake boxes, mobile phone boxes, suitcases, leather, etc.


Leyuan has different types of flat pot magnets for sale, such as powerful flat magnets, long flat magnets, and strong round flat magnets. If you want to buy flat magnets, please contact Leyuan or leave a message through our website.

The Specification of Pot Magnets Without Bore

Stamp

Lathe

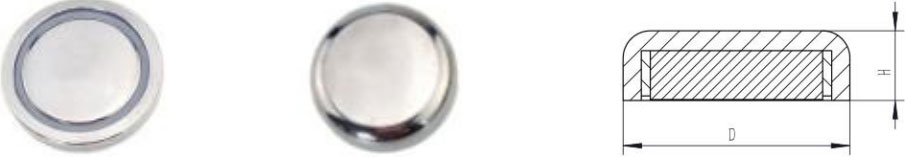

Pot magnet (NdFeB), without bore, Nickel coating, body stamping machining.


Pot Magnet (NdFeB), Without Bore, Nickel Coating, Body Stamping Machining.


Model

D

H

Weight (g)

Pull force (Kgf)

101-10

10

5

4

2

101-12

12

5

5

2

101-16

16

5.2

8

8

101-20

20

7.2

16

12

101-25

25

7.7

25

22

101-32

32

7.8

40

34

101-36

36

7.6

51

41

101-40

40

7.8

70

51

101-42

42

8.8

78

66

101-48

48

10.8

121

78

101-60

60

15

245

120

101-75

75

17.8

485

168

101-10L

10

4

3

1

101-12L

12

4

4

2

101-16L

16

5.2

8

6

101-20L

20

6

14

11

101-25L

25

6.9

24

20

101-32L

32

6.8

39

32

101-36L

36

6.9

51

39

101-42L

42

7.9

79

63

101-48L

48

9.6

115

75

101-60L

60

15

268

120

101-75L

75

17.8

542

168

101-10P

10

5

4

2

101-12P

12

5

5

3

101-16P

16

5.2

8

10

101-20P

20

7.2

16

15

101-25P

25

7.7

25

28

101-32P

32

7.8

40

43

101-36P

36

7.6

51

51

101-40P

40

7.8

70

64

101-42P

42

8.8

78

83

101-48P

48

10.8

121

98

101-60P

60

15

245

169

101-75P

75

17.8

485

244

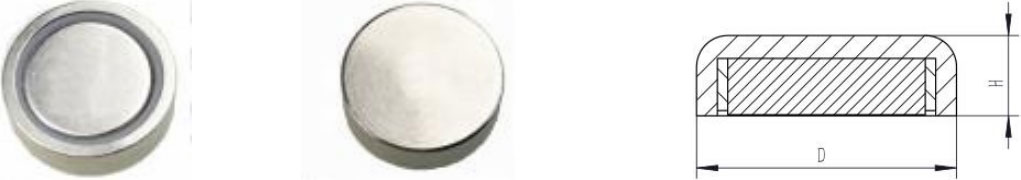

Pot magnet (NdFeB), without bore, Nickel coating, body lathe machining.


Pot Magnet (NdFeB), Without Bore, Nickel Coating, Body Lathe Machining.


Model

D

H

Weight (g)

Pull force (Kgf)

102-6

6

4.7

2

0.5

102-8

8

4.7

3

1

102-10

10

5

4

1.5

102-12

12

5

5

2

102-14

14

4.5

7

5

102-16

16

5.2

9

8

102-18

18

6

12

10

102-20

20

7.2

16

12

102-22

22

6.9

20

18

102-25

25

7.7

26

22

102-28

28

6.4

31

26

102-30

30

6.4

35

29

102-32

32

7.8

43

34

102-34

34

7.3

50

37

102-36

36

7.6

54

41

102-38

38

7.4

65

46

102-40

40

7.8

75

51

102-42

42

8.8

83

68

102-45

45

8.7

103

75

102-48

48

10.8

130

78

102-50

50

10.7

151

91

102-55

55

12

209

102

102-60

60

15

256

120

102-65

65

14.9

362

137

102-70

70

16.9

467

153

102-75

75

17.8

510

178

102-80

80

19

681

200

102-90

90

18

841

280

102-100

100

18

1054

320

102-110

110

18

1275

360

102-120

120

18

1420

400
