Magnetic grid is also called magnetic grate separator. Strong permanent magnetic grids separate fine ferromagnetic impurity particles. We can use a targeted design so that the product can be easily installed in cone, square, round, or irregularly-shaped hoppers.


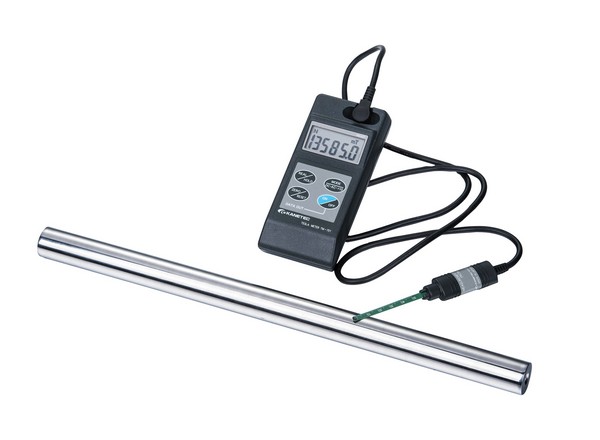

The magnetic grate separator is designed with a super NdFeB magnet. It is 3-6 times stronger than ferrite magnets and provides more than 13000Gs of strong magnetic force which can separate nano-sized ferromagnetic particles. It is widely used in plastics, ceramics, powder, paste, and other iron removal equipment.


Types of Magnetic Grid for Sale

Leyuan Square shape magnetic grate

Leyuan Square shape magnetic grate

Leyuan Easy cleaning magnetic grate

Leyuan Easy cleaning magnetic grate

Leyuan Half circle ezy cleaning magnetic grid

Leyuan Half circle ezy cleaning magnetic grid

Leyuan Multi-layer magnetic hopper grate

Leyuan Multi-layer magnetic hopper grate

Leyuan Round magnetic grate separator

Leyuan Round magnetic grate separator

Leyuan Round shape grid magnet

Leyuan Round shape grid magnet

Leyuan Round shape magnetic grate filter

Leyuan Round shape magnetic grate filter

Leyuan Single-layer magnetic grid

Leyuan Single-layer magnetic grid

Leyuan Square shape grid magnets

Leyuan Square shape grid magnets


Magnetic Grid Features

In order to cater to different user requirements, we have designed two kinds of magnetic grids. One is to achieve the adsorption of small particles over a close distance, with a magnetic field higher than 13000Gs to purify fine powder. The other is to provide a greater holding force that can attract screws, nuts, and so on from a distance, thus better protecting the equipment.


As one of the leading magnetic filters manufacturers, we promise that all of LEYUAN's magnetic grills are hygienically qualified. All of them are made from stainless steel and are finely constructed with no pits, cracks, or crevices and meet recognized hygiene standards for food processing.


The easy-to-clean rare-earth magnetic rack can quickly remove accumulated impurities. Simply pull out the magnetic unit and the dirt from the casing will fall off under the force of gravity. The cleaning cycle takes only a few seconds.


Easy to clean magnetic grates: stainless steel casing is used outside of the magnetic bar. During operation, the material passes through the casing and ferromagnetic particles are adsorbed by magnetic force. When cleaning, the magnetic bar is pulled out and the particles on the housing fall automatically due to the absence of magnetic attraction, saving time for wiping.


Single-Layer Magnetic Grid

Single-layer magnetic grids are widely used in plastics, ceramics, powders, pastes, and other iron removal equipment. Magnetic field gradient design is reasonable and all parts undergo a strictly polished process.


Multi-layer magnetic grids: a single-layer magnetic grid cannot completely remove impurities from raw materials with more iron impurities, whereas the multi-layer magnetic grid can separate much more at one time and so will adsorb more impurities.


How to Make Sure the Size of a Magnetic Grid is Correct?

Please measure the hopper’s size if you do not have the magnetic grate’s drawing. For example, 3 pieces of data are needed: top diameter, bottom diameter and the height. We will help you to finish the next steps and place a real magnetic grid into your hand.

How to Make Sure the Size of a Magnetic Grid is Correct?

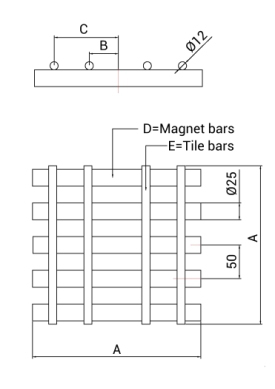

Standard Square Grate Magnets

Standard Square Grate MagnetsModelABCD=qty.E=qty.
No.(mm)(mm)(mm)barsbars
SN 15015031-32
SN 20020056-42
SN 25025081-52
SN 300300106-62
SN 350350131-72
SN 400400156-82
SN 4504506618194
SN 50050071206104
SN 55055081231114
SN 60060086256124

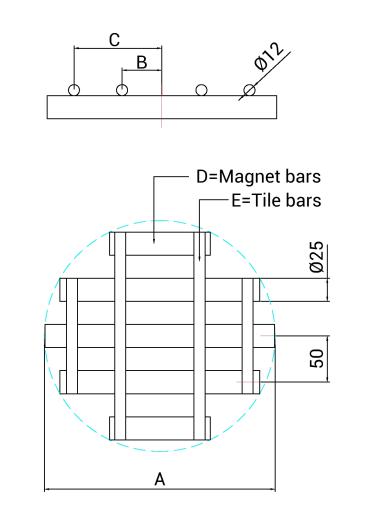

Standard Round Grate Magnets

Standard Round Grate MagnetsModelABCD=qty.E=qty.
No.(mm)(mm)(mm)barsbars
RN 15014723-32
RN 20018430-42
RN 25024736-52
RN 30028941-62
RN 35034746-72
RN 40039150-82
RN 4504475517894
RN 50049458192104
RN 55054762205114
RN 60059465217124


Other Magnetic Products You May Also Like

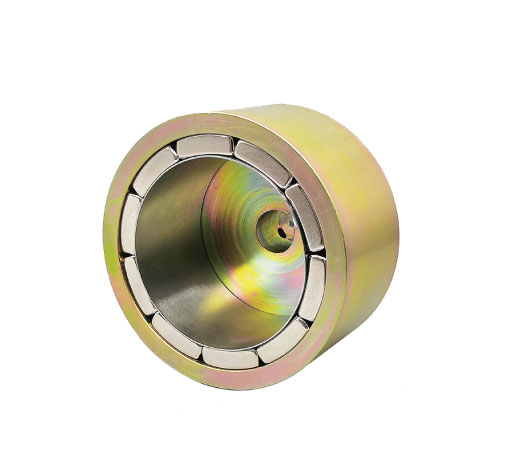

Custom Design Magnets
