Magnetic Drawer

Magnetic Drawer

Dry Powder & Particle separation

Magnetic drawers, also named drawer type magnetic grill, are made from magnetic grates in a 304L or 316L stainless steel case. As one kind of popular magnetic separator, magnetic drawer filter separate ferrous particles from the desired product. The magnetic field intensity of the drawer-type magnetic grill is over 13000Gs and so is applicable to all kinds of powder industries.


LEYUAN supplies standard-style drawer-type industrial drawer magnets (plate magnetic separators), easy-cleaning styles, pneumatic easy-cleaning styles, and customer-made drawer-type magnetic grill with food grade or sanitary grade features, etc.

Types of Magnetic Drawer for Sale

Leyuan Magnetic Drawer

Leyuan Magnetic Drawer

Leyuan Magnetic Drawer

Leyuan Magnetic Drawer

Features of Drawer-type Magnetic Grill

  • No energy consumption, no pollution, and easy to clean

  • Simple structure, easy to install, and can be installed in the pipeline or outlet of the production line.

  • The magnetic bar and the magnetic spacing is carefully designed so that the strong magnetic area can be more fully utilized.

  • Drawer-type magnetic filters have many specifications and the specific size can be designed and manufactured according to the requirements of customers.

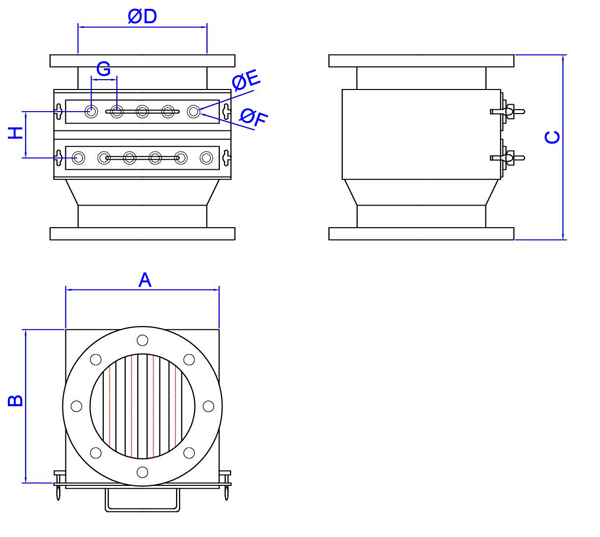

Diagram Of Drawer-type Magnetic Grill

Diagram Of Magnetic Drawers

Specification

A

B

C

Flange

D

E
Dia of Rod

F
Dia of tube

G

H

Layers

No of rods

MY160-2

160

160

400

DN100

110

25

28

50

100

2

5

MY160-3

500

25

28

50

100

3

8

MY220-2

220

220

400

DN150

161

25

28

50

100

2

7

MY220-3

500

25

28

50

100

3

11

MY270-2

270

270

400

DN200

222

25

28

50

100

2

9

MY270-3

500

25

28

50

100

3

14

MY330-2

330

330

400

DN250

276

25

28

50

100

2

11

MY330-3

500

25

28

50

100

3

17

MY380-2

380

380

400

DN300

328

25

28

50

100

2

13

MY380-3

500

25

28

50

100

3

20
