Magnetic trap prevents abrasive wear, prevents pump clogging, and ensures the product is free of iron impurities. The LEYUAN magnetic pipeline filter is designed for all sizes of your pipes.


LEYUAN permanent magnet magnetic trap, equipped with super strong magnetic bar, is used to protect pipe lines and processing equipment. The magnetic trap adsorbs ferromagnetic dirt, rust and fine iron pollutants in the pipeline through magnetic force to achieve full product purification.


The magnetic trap can work up to 80°C (176°F). If temperature resistance is required, we can optimize the design to work up to 350°C (662°F).

Types of Magnetic Trap for Sale

Leyuan Magnetic Trap

Leyuan Magnetic Trap

Leyuan Magnetic Trap

Leyuan Magnetic Trap


Magnetic Trap Features

The magnetic unit is composed of a set of bar magnets. According to the pipe size, flow rate and viscosity, a different number of magnets are distributed within the inlet. The liquid flows from the inlet to the outlet and goes through the magnetic liquid trap; small ferromagnetic particles in materials will be held, and un-contaminated material is not affected by the magnetic force, which will achieve the effect of purification.


High-gradient magnetic field liquid filters can also be designed to work in pressure piping including vessels, magnetic units, and flanges. Complete equipment can be leak-free at 2MPa, and an easy-to-clean style is available. Magnetic traps can be installed vertically or horizontally at any angle to meet different capacity, temperature, pressure, and viscosity requirements. The easy-to-clean rare-earth magnetic trap can quickly remove accumulated impurities. Simply pull out the magnetic unit and the dirt from the housing will fall off under the force of gravity. The cleaning cycle lasts only a few seconds.


The Specifications of Magnetic Trap

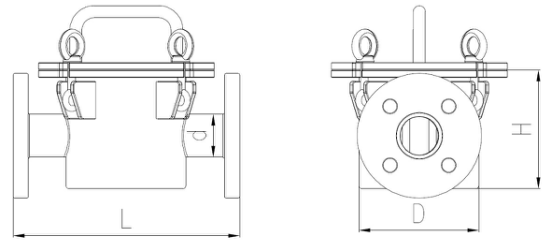

Flange Type of Magnetic Trap

Flange Type of Magnetic Trap

Specification

D

d

H

L

No. of rods

JJ-150/25

159

32

150

300

5

JJ-150/32

159

38

150

300

5

JJ-150/40

159

48.3

150

300

5

JJ-150/50

159

57

150

300

5

JJ-150/65

159

76

150

300

5

JJ-200/50

219

57

200

350

7

JJ-200/65

219

76

200

350

7

JJ-200/80

219

89

200

350

7

JJ-200/100

219

108

200

350

7

JJ-250/80

250

89

250

400

7

JJ-250/100

250

108

250

400

7

JJ-250/125

250

138

250

400

7

JJ-250/150

250

159

250

400

7

JJ-300/125

300

138

300

450

9

JJ-300/150

300

159

300

450

9

JJ-300/200

300

219

300

450

9

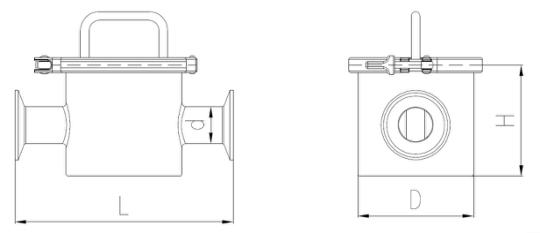

Clamp Type of Magnetic Trap

Clamp Type Of Magnetic Trap
SpecificationDdHLNo. of rods
JJ-100/25CC10025.41502203
JJ-100/38CC10038.11502203
JJ-100/50CC10050.81502203
JJ-100/76CC10076.11502203
JJ-114/25CC11425.41502505
JJ-114/38CC11438.11502505
JJ-114/50CC11450.81502505
JJ-114/76CC11476.11502505
JJ-150/25CC15925.41503005
JJ-150/38CC15938.11503005
JJ-150/50CC15950.81503005
JJ-150/76CC15976.11503005
JJ-150/100CC159101.61503005
JJ-200/25CC21925.42003607
JJ-200/38CC21938.12003607
JJ-200/50CC21950.82003607
JJ-200/76CC21976.12003607
JJ-200/100CC219101.62003607
