Pot Magnets Rubber Coated

Pot Magnets Rubber Coated

Pot Magnets Rubber-Coated – These rubber coated neodymium pot magnets have an external thread. A strong Neodymium magnet is embedded in a steel pot. The steel pot increases the adhesive force of the magnet on direct contact with a thick iron surface. If there is no direct contact with the counterpart, or if the steel plate is thin, painted or rough, then the pot magnet will be much less strained. Leyuan offers qualified rubber coated/covered pot magnets for sale.


As one of the professional  pot magnets suppliers, we offer qualified rubber coated magnets for sale. Our rubber coated pot magnets mainly have two advantages.

Shear Force: the indicated adhesive force is measured perpendicularly to the surface to which the magnet should stick. It takes a lot less strength to move the magnet sideways. Therefore, rubber coated pot magnets should be less stained on a wall as opposed to when they are used from the ceiling.

Magnetic Properties: rubber coated super magnets have super-strong magnetic forces and intrinsic coercive force. Rubberised neodymium magnets are good in ambient temperatures with high anti-corrosion abilities and stable performance.

The Specification of Pot Magnets Rubber Coated

Female Bush

Thread Bolt

Internal Thread

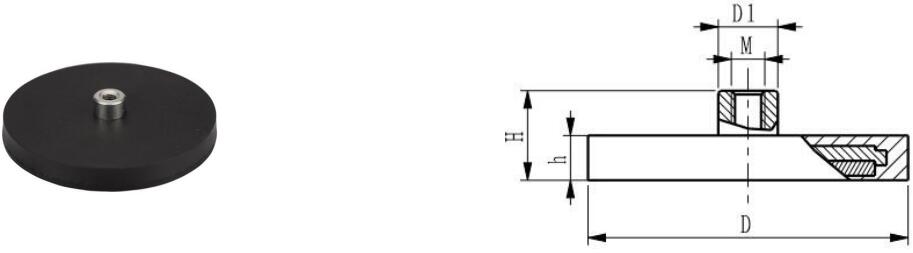

Rubber coated pot magnet (NdFeB), with screwed bush.


Rubber Coated Pot Magnet (NdFeB), With Screwed Bush.


Model

D

M

D1

h

H

Weight
(g)

Pull force (Kgf)

122-22

22

4

8

6

11.5

12

5

122-43

43

4

8

6

12

33

8

122-66

66

5

10

8

14.2

104

20

122-88

88

8

12

8.5

15.8

200

42

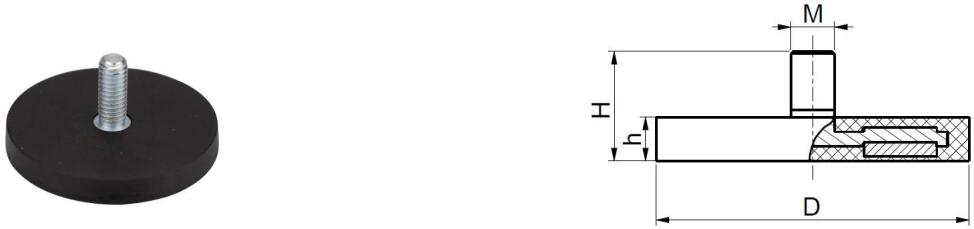

Rubber coated pot magnet (NdFeB), with external thread.


Rubber Coated Pot Magnet (NdFeB), With Screwed Bush.


Model

D

M

h

H

Weight
(g)

Pull force (Kgf)

123-22

22

4

6

12.5

11

5

123-43

43

6

6

21

32

8

123-66

66

8

8

23

107

20

123-88

88

8

8.5

24.5

193

42

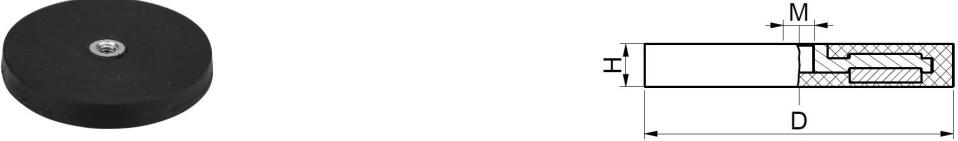

Rubber coated pot magnet (NdFeB), with internal thread.


Rubber Coated Pot Magnet (NdFeB), With Screwed Bush.


Model

D

M

H

Weight
(g)

Pull force (Kgf)

124-43

43

4

6

29

8

124-66

66

6

8

100

20

124-88

88

8

8.5

186

42
